Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard

  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
مكان المنشأ قوانغتشو ، الصين
اسم العلامة التجارية BERGMAN, BERGMAN
رقم الموديل T05-25mm
الحد الأدنى لكمية 1
الأسعار $35-60

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

ويتشات: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
مقاس 25 ملم مواد الوجه التنغستن كربيد TC
مادة المقعد التنغستن كربيد TC مادة المطاط الصناعي فيتون التيار الوطني الحر
أجزاء معدنية SS316 هاستيلوي سي AM350 ماكس الضغط ≤ 1.5mpa
سرعة الخط ≤ 15m/s نطاق درجة الحرارة -20 ° C-180 درجة مئوية
كود اتش تي اس 8484.20.00 نموذج T05-25mm
الأحجام القياسية 20 ملم، 25 ملم، 35 ملم معايير الامتثال DIN24960 ، ISO3069 ، EN12576 ، API682
ختم ثانوي فيتون التيار الوطني الحر خيارات المواد كربيد التنغستن ، كربيد السيليكون ، الجرافيت الكربوني ، الألومينا
نماذج بديلة فلاي جي تي 3102، 5520، 3085
إبراز

Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal,25mm Flygt Pump Mechanical Seal,DIN24960 Standard Pump Mechanical Seal

,

25mm Flygt Pump Mechanical Seal

,

DIN24960 Standard Pump Mechanical Seal
اترك رسالة
منتوج وصف
Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal
Product Overview

This high-quality mechanical seal is designed to replace Flygt pump seals, manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd.

Technical Specifications
Parameter Value Parameter Value
Name Mechanical Seal Size Standard size (20mm, 25mm, 35mm)
Brand BERGMAN Model T05-25mm
Pressure ≤ 1.5mpa Line Speed ≤ 15m/s
Temperature -20°C-180°C (Depends on O-ring material) Application Flygt pump
Face Material Tungsten carbide TC Seat Material Tungsten carbide TC
Secondary Seal VITON FPM Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015 Service OEM customization service
Compatible Flygt Pump Models

This seal is compatible with a wide range of Flygt pump models including:

  • 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071
  • 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140
  • 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740
  • 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080
  • 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170
  • 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350
  • 3351, 3356, 3400, 3501, 3530, and full range of Flygt pump mechanical seals
Product Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective options
  • Large inventory with factory-direct pricing
  • Compatible with Burgman, John Crane, AES and other renowned brands
  • OEM and customization services available
  • Fast delivery and excellent after-sales service
Material Advantages

Our seals feature wear-resistant materials including:

  • Tungsten carbide
  • Silicon carbide
  • Carbon graphite
  • Alumina
  • Rubber seals (VITON FPM)
  • PTFE seals
  • High-quality O-rings
Product Images

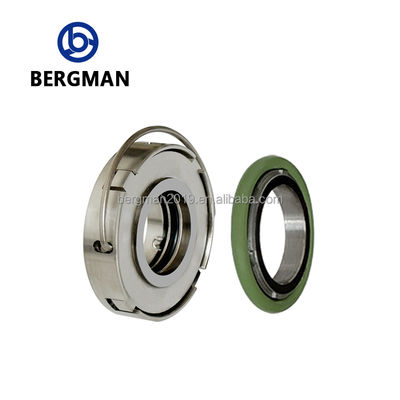

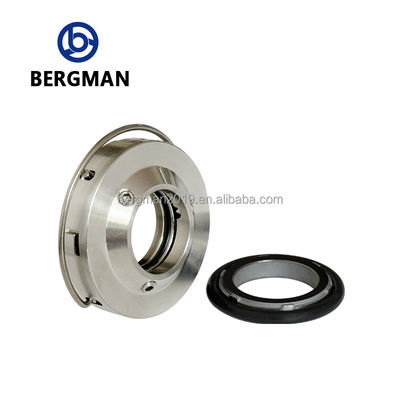

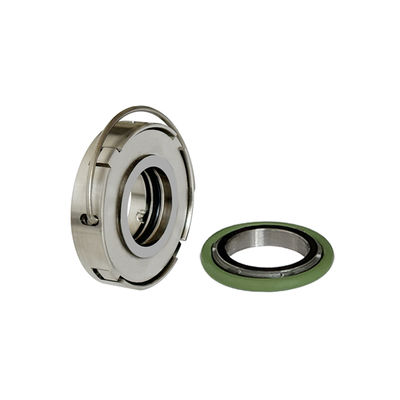

Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 0 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 1 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 2
Company Profile

Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, the company was reorganized in 2019 and expanded in 2023. We are ISO9001:2015 certified and specialize in:

  • Pump mechanical seals
  • Axe mechanical seals
  • Fluid mechanical seals
  • Metal bellows mechanical seals
  • Various sealing materials (carbide, silicon carbide, carbon graphite, alumina)

Located in Guangzhou with convenient access to major ports, we maintain a 2,000+ square meter warehouse for fast delivery.

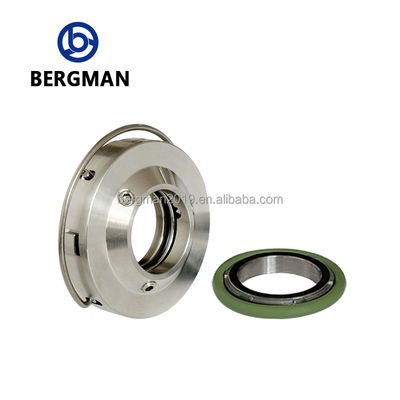

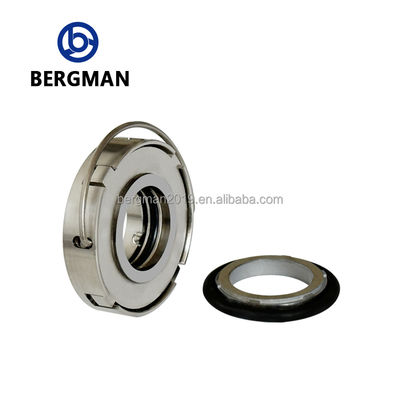

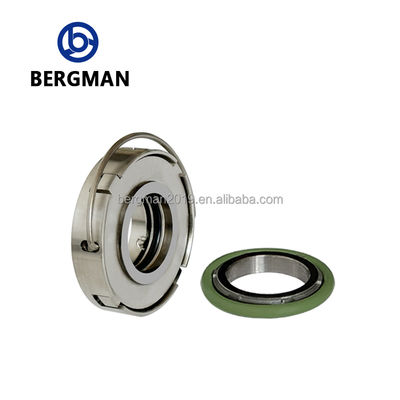

Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 3 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 4 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 5
Frequently Asked Questions
Q: Are you a factory or a trader?

A: We are a production factory with our own international trade department.

Q: Where is your factory located?

A: Our factory is in Guangzhou City, near Guangzhou Port and Shenzhen Port.

Q: How many days is your delivery time?

A: Stock items ship immediately. Custom items require 10-25 days depending on quantity.

Q: What are your payment terms?

A: For stock: 100% prepayment. For custom orders: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
