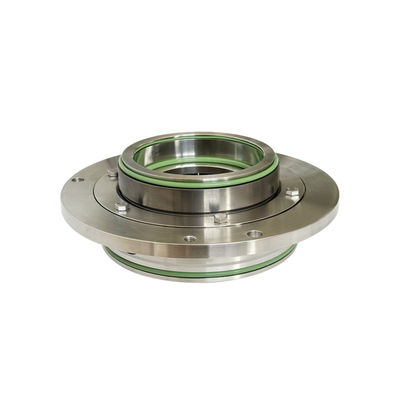

120mm Flygt Pump Mechanical Seal with Tungsten Carbide TC Face and DIN24960 Standard for Flygt Pumps
اتصل بي للحصول على عينات مجانية وكوبونات.
ال WhatsApp:0086 18588475571
ويتشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.
xتفاصيل المنتج
| مقاس | 120mm | مواد الوجه | التنغستن كربيد TC |
|---|---|---|---|
| مادة المقعد | التنغستن كربيد TC | مادة المطاط الصناعي | فيتون التيار الوطني الحر |
| أجزاء معدنية | SS316 هاستيلوي سي AM350 | ماكس الضغط | ≤ 1.5mpa |
| درجة حرارة كحد أقصى | -20 ° C-180 درجة مئوية | سرعة خط الحد الأقصى | ≤ 15m/s |
| نموذج | fgl-fs | كود اتش تي اس | 8484.20.00 |
| نماذج متوافقة | 2610 ، 2620 ، 2630 ، 2640 ، 4610 ، 4620 ، 2660 ، 2670 ، 4630 ، 4640 ، 3153 ، 5100.211 ، 5100.220 ، 2 | الامتثال للمعايير | DIN24960 ، ISO3069 ، EN12576 ، API682 |
| كمية لكل مجموعة | 1Set | ختم ثانوي | فيتون التيار الوطني الحر |
| خيارات المواد | كربيد التنغستن ، كربيد السيليكون ، الجرافيت الكربوني ، الألومينا | ||
| إبراز | 120mm Flygt Pump Mechanical Seal,DIN24960 Standard Flygt Pump Mechanical Seal,Tungsten Carbide TC Flygt Pump Mechanical Seal,DIN24960 Standard Flygt Pump Mechanical Seal,Tungsten Carbide TC Flygt Pump Mechanical Seal |
||
منتوج وصف
Replace Flygt Pump Seal FS-120mm 3351 3602 3800 7121 Pump Mechanical Seal
Product Overview
High-performance mechanical seal designed for Flygt pumps, manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd.
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Name | Mechanical Seal | Size | Standard size (20mm-120mm) |
| Brand | BERGMAN | Model | FGL-FS |
| Pressure | ≤ 1.5MPa | Line Speed | ≤ 15m/s |
| Temperature | -20°C to 180°C (depends on O-ring material) | Application | Flygt pump |
| Face Material | Tungsten carbide (TC) | Seat Material | Tungsten carbide (TC) |
| Secondary Seal | VITON FPM | Metal Parts | SS316, Hastelloy C, AM350 |
| Certificate | ISO9001-2015 | Service | OEM customization available |
Compatible Flygt Pump Models
- 2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640
- 3153, 5100.211, 5100.220, 2100.211, 3171, 3152, 4650, 4660
- 5100.250, 5100.251, 5100.260, 5100.261, 3202, 4670, 4680
- 5100.300, 5100.310, 5151.300, 5151.310, 3301, 5150.350, 5150-360
Key Features
- Complies with DIN24960, ISO3069, EN12576, and API682 standards
- Direct replacement for original equipment manufacturer seals
- Available in various price points to meet different budget requirements
- 2,000+ square meter warehouse with large inventory for fast delivery
- Compatible with Burgman, John Crane, AES and other major brands
- OEM and custom services available
- Factory-direct pricing with excellent after-sales support
Material Specifications
Premium wear-resistant materials including:
- Tungsten carbide
- Silicon carbide
- Carbon graphite
- Alumina
- Rubber seals (VITON, PTFE)
- O-rings

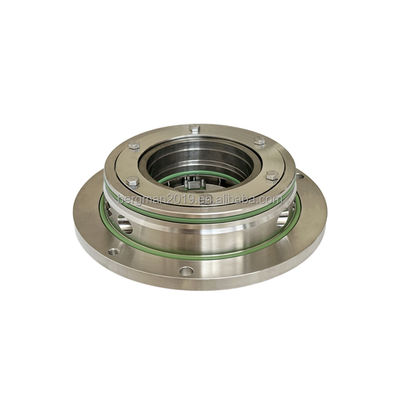

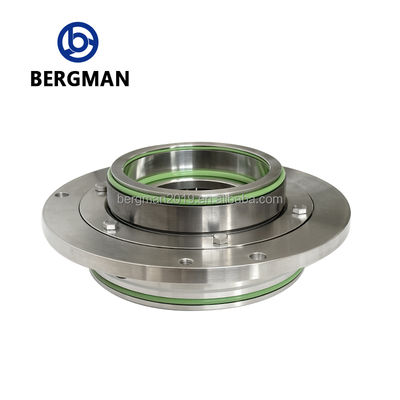

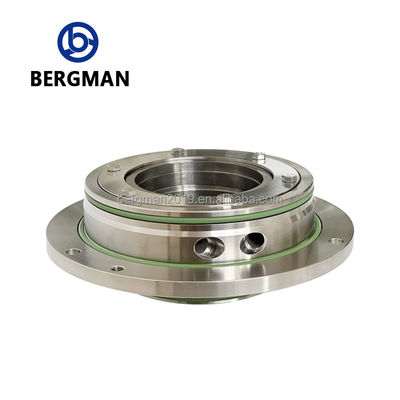

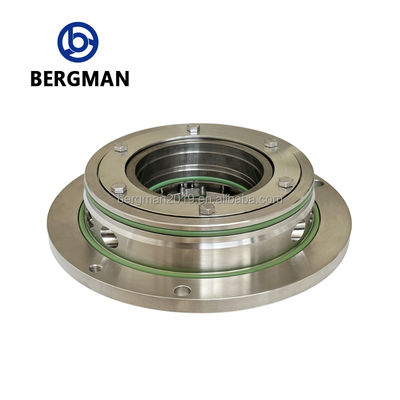

Product Images
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) has been in operation since 1996. With over 20 years of development, we established Guangzhou Bogman Mechanical Seals Co., Ltd. in 2019 and Guangdong Bogman Seals Co., Ltd. in 2023. Our company is ISO9001:2015 certified.
We specialize in manufacturing various mechanical seals including pump seals, fluid seals, metal bellows seals, and more. Our facility is located in Guangzhou with convenient access to major ports including Guangzhou Port, Shenzhen Port, and Foshan Port.
Our 2,000+ square meter warehouse ensures fast delivery. Company motto: Innovation, Professionalism, Quality-oriented.
Facilities
- 1,000+ product varieties in exhibition hall
- 2,000+ square meter warehouse with video viewing available
- Modern machine tools and dust-free workshop
- Advanced inspection equipment and assembly line operation
Application Range
Widely used in:
- Pump types: Pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps
- Industries: Petroleum, chemical, aerospace, pharmaceutical, food, agricultural irrigation
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Located in Guangzhou City, near Guangzhou Port and Shenzhen Port. Other ports available upon request.
Q: What is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days depending on order quantity.
Q: Do you provide free samples?
A: Samples are typically not free, but sample costs can be refunded with order.
Q: What are your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping. We accept T/T, BABY, Western Union, and Alibaba payment.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom orders.
Contact Information
International Trade:
Li Wei: Mobile +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
