Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard

  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
مكان المنشأ قوانغتشو ، الصين
اسم العلامة التجارية BERGMAN, BERGMAN
رقم الموديل 1330 45 ملم
الحد الأدنى لكمية 1
الأسعار $60-90

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

ويتشات: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
مقاس 45mm مواد الوجه التنغستن كربيد TC
مادة المقعد التنغستن كربيد TC مادة المطاط الصناعي فيتون التيار الوطني الحر
أجزاء معدنية SS316 هاستيلوي سي AM350 ماكس الضغط ≤ 1.5mpa
سرعة خط الحد الأقصى ≤ 15m/s نطاق درجة الحرارة -20 ° C-180 درجة مئوية
كود اتش تي اس 8484.20.00 نماذج متوافقة Flygt 1335.181 ، 2024 ، 2056 ، إلخ.
الامتثال للمعايير DIN24960 ، ISO3069 ، EN12576 ، API682 ختم ثانوي فيتون التيار الوطني الحر
مادة الحلقة يعتمد على التطبيق نوع المنتج الختم الميكانيكي
استبدال فلاي جي تي 3085
إبراز

Replace Flygt 1330 Pump Mechanical Seal,DIN24960 Standard Mechanical Seal,ISO3069 Standard Upper Seal

,

DIN24960 Standard Mechanical Seal

,

ISO3069 Standard Upper Seal
اترك رسالة
منتوج وصف
Replace Flygt 45mm 1330 Pump Mechanical Seal Upper Seal
Product Overview

This mechanical seal is designed as a replacement for Flygt pump models, offering high-quality materials and precise engineering for reliable performance in demanding industrial applications.

Technical Specifications
Parameter Value Parameter Value
Name Mechanical Seal Size Standard size 20mm
Brand BERGMAN Model 45mm, 25mm
Pressure ≤ 1.5mpa Line Speed ≤ 15m/s
Temperature -20°C-180°C (Depends on O-ring material) Application Flygt pump
Face Material Tungsten carbide TC Seat Material Tungsten carbide TC
Secondary Seal VITON FPM Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015 Service OEM customization service
Compatible Flygt Pump Models

This mechanical seal is compatible with a wide range of Flygt pump models including:

  • 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066
  • 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102
  • 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630
  • 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065
  • 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126
  • 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230
  • 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400
  • 3501, 3530, and full range of Flygt pump mechanical seals
Key Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective alternatives
  • Large inventory with factory-direct pricing for faster delivery
  • Compatible with Burgman, John Crane, AES and other major brands
  • OEM and customized services available
  • Premium materials including tungsten carbide, silicon carbide, and carbon graphite
Product Images

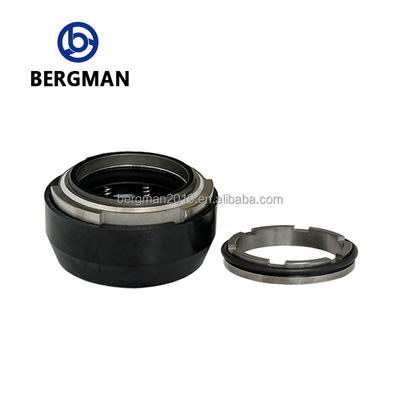

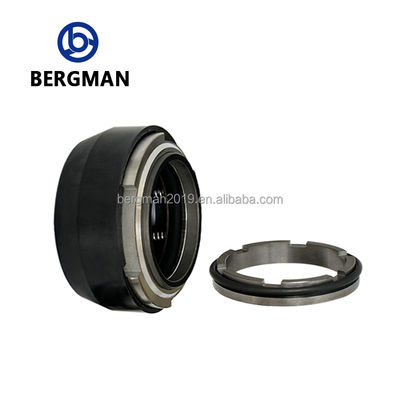

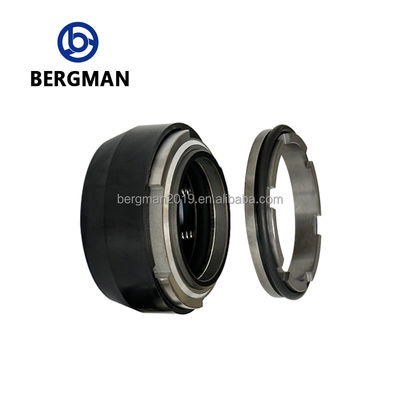

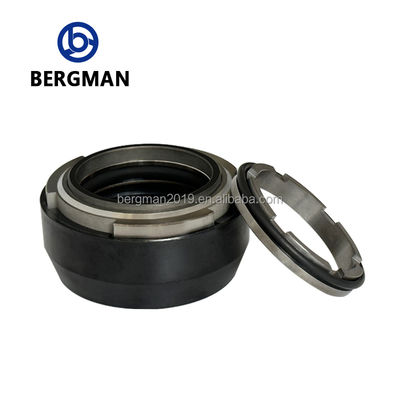

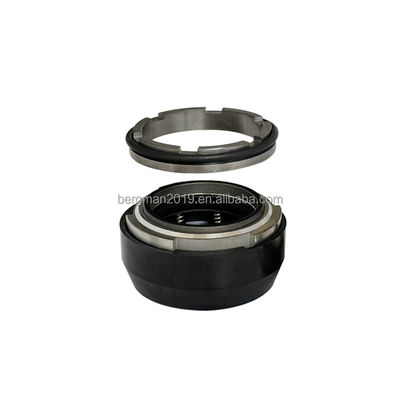

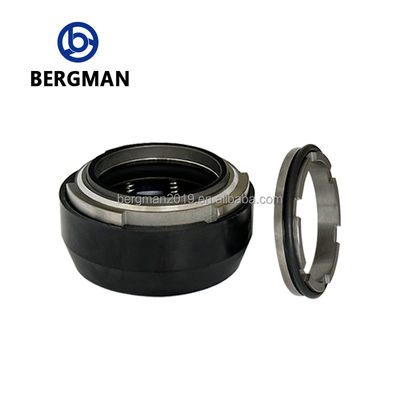

Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 0 Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 1 Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 2
Company Profile

Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) has been in operation since 1996. With over 20 years of development, we have established ourselves as a leading manufacturer of high-quality mechanical seals.

Our company has passed the quality management system GB/T19001-2016 idt ISO9001:2015 certification and offers a comprehensive range of mechanical seals including:

  • Pump mechanical seals
  • Axe mechanical seals
  • Fluid mechanical seals
  • Metal bellows mechanical seals
  • Various sealing materials including cemented carbide, silicon carbide, and carbon graphite
Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 3
Our Facilities
  • 2,000+ square meter warehouse with large inventory
  • Modern advanced machine tool equipment
  • Dust-free workshop environment
  • Comprehensive inspection equipment
  • Efficient assembly line operations
Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 4 Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 5
Application Range

Our mechanical seals are widely used in:

  • Pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps
  • Petroleum, chemical, aerospace, pharmaceutical, and food industries
  • Agricultural irrigation systems
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days for production.
Q: Do you provide free samples?
A: Samples are typically not free, but sample costs can be refunded after order placement.
Q: What are your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
