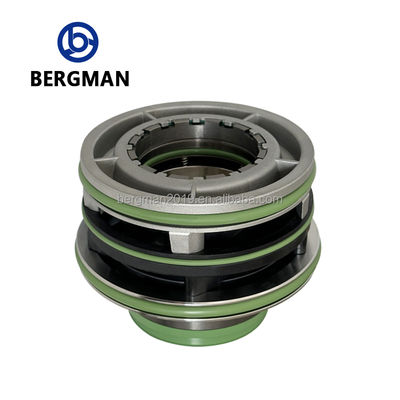

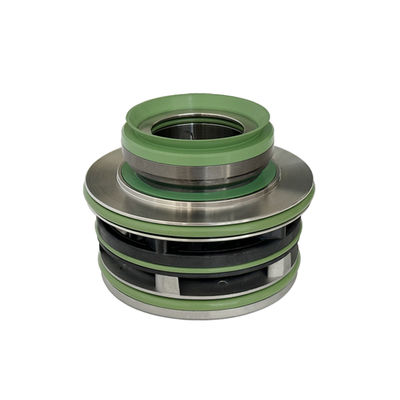

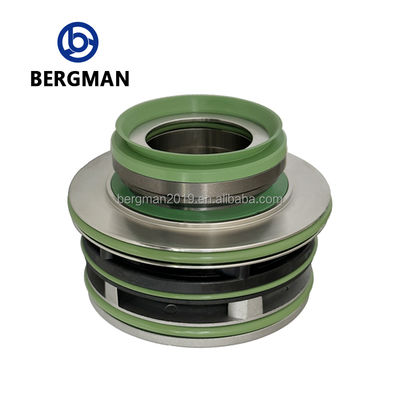

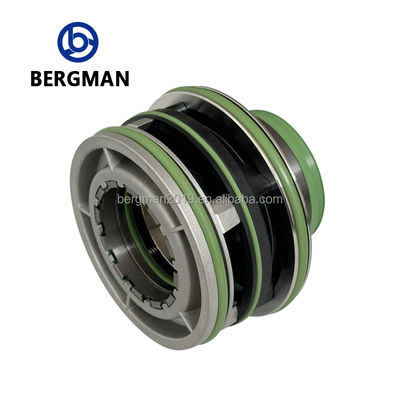

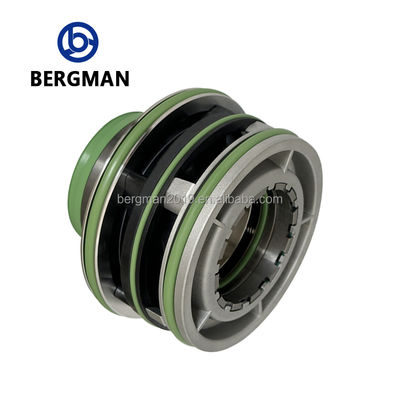

ISO9001-2015 Certified 60mm Flygt Pump Cartridge Mechanical Seal with Tungsten Carbide TC and VITON FPM
اتصل بي للحصول على عينات مجانية وكوبونات.
ال WhatsApp:0086 18588475571
ويتشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.
xتفاصيل المنتج
| مقاس | 60 مم | مواد الوجه | التنغستن كربيد TC |
|---|---|---|---|
| مادة المقعد | التنغستن كربيد TC | مادة المطاط الصناعي | فيتون التيار الوطني الحر |
| أجزاء معدنية | SS316 هاستيلوي سي AM350 | ماكس الضغط | ≤ 1.5mpa |
| نطاق درجة الحرارة | -20 ° C-180 درجة مئوية | سرعة خط الحد الأقصى | ≤ 15m/s |
| نموذج | fgl-fs | كود اتش تي اس | 8484.20.00 |
| نماذج متوافقة | 2610 ، 2620 ، 2630 ، 2640 ، 4610 ، 4620 ، 2660 ، 2670 ، 4630 ، 4640 ، 3153 ، 5100.211 ، 5100.220 ، 2 | الامتثال للمعايير | DIN24960 ، ISO3069 ، EN12576 ، API682 |
| نوع الختم | خرطوشة الختم الميكانيكي | مادة الإطار | معدن |
| ختم ثانوي | فيتون التيار الوطني الحر | ||
| إبراز | ISO9001-2015 Mechanical Seal,Tungsten Carbide TC Cartridge Mechanical Seal,VITON FPM Flygt Pump Seal,Tungsten Carbide TC Cartridge Mechanical Seal,VITON FPM Flygt Pump Seal |
||
منتوج وصف
Replace Flygt Pump Seal FS-60mm 3202 4670 4680 5100 Metal Frame Cartridge Mechanical Seal
Product Overview
Guangzhou Bergman Mechanical Seals Co., Ltd. specializes in high-quality mechanical seals for industrial applications, including this replacement seal for Flygt pumps.
| Specification | Details |
|---|---|
| Product Type | Mechanical Seal |
| Size Options | 20mm, 25mm, 35mm, 45mm, 60mm, 90mm |
| Brand | BERGMAN |
| Model | FGL-FS |
| Pressure Rating | ≤ 1.5MPa |
| Temperature Range | -20°C to 180°C (depends on O-ring material) |
| Face Material | Tungsten Carbide (TC) |
| Seat Material | Tungsten Carbide (TC) |
| Secondary Seal | VITON FPM |
| Metal Parts | SS316, Hastelloy C, AM350 |
| Certification | ISO9001-2015 |
| Service | OEM customization available |
Compatible Flygt Pump Models
This mechanical seal is compatible with numerous Flygt pump models including:
- 2610, 2620, 2630, 2640, 4610, 4620
- 2660, 2670, 4630, 4640, 3153, 5100.211
- 5100.220, 2100.211, 3171, 3152, 4650, 4660
- 5100.250, 5100.251, 5100.260, 5100.261
- 3202, 4670, 4680, 5100.300, 5100.310
- 5151.300, 5151.310, 3301, 5150.350, 5150-360
Key Features
- Complies with DIN24960, ISO3069, EN12576, and API682 standards
- Direct replacement for original equipment seals
- Available in various price points to meet different budget requirements
- 2,000+ square meter warehouse with large inventory for fast delivery
- Can replace Burgman, John Crane, AES and other major brand seals
- OEM and customized services available
- Factory-direct pricing with high quality standards
Materials & Construction
Our seals feature wear-resistant materials including:
- Tungsten carbide
- Silicon carbide
- Carbon graphite
- Alumina
- Rubber seals
- PTFE seals
- O-rings

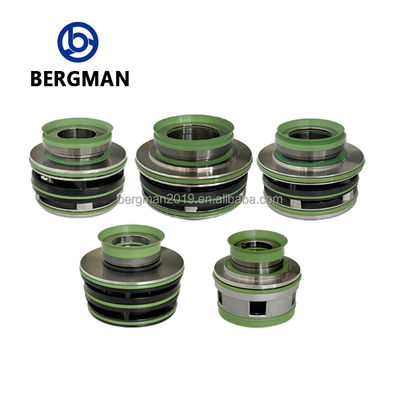

Product Images
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996 and has over 20 years of experience in mechanical seal manufacturing. The company is ISO9001:2015 certified and offers a comprehensive range of sealing solutions including:
- Pump mechanical seals
- Axe mechanical seals
- Fluid mechanical seals
- Metal bellows mechanical seals
- Container mechanical seals
- Rubber bellows mechanical seals
- O-ring seals
- PTFE mechanical seals
- Various sealing materials including cemented carbide, silicon carbide, carbon graphite, and alumina
Facilities & Capabilities
- 2,000+ square meter warehouse with large inventory
- Modern machine tool equipment
- Dust-free workshop
- Advanced inspection equipment
- Assembly line operations
- Convenient location near Guangzhou Port, Shenzhen Port, and Foshan Port
Applications
Our mechanical seals are widely used in:
- Pipeline pumps
- Centrifugal pumps
- Sewage pumps
- Chemical pumps
For industries including:
- Petroleum
- Chemical
- Aerospace
- Pharmaceutical
- Food processing
- Agricultural irrigation
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port. Other ports can be selected based on customer needs.
Q: How many days is your delivery time?
A: For stock products, we can ship immediately after payment. For custom items, production typically takes 10-25 days depending on order quantity and type.
Q: Do you provide free samples?
A: We usually don't provide free samples, but sample costs can be refunded after order placement.
Q: What is your payment terms?
A: For stock items: 100% prepayment. For custom orders: 30% deposit, 70% before shipment. We accept T/T, BABY, Western Union, and Alibaba payment.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom product requests.
Contact Information
International Trade:
Li Wei: Mobile +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
